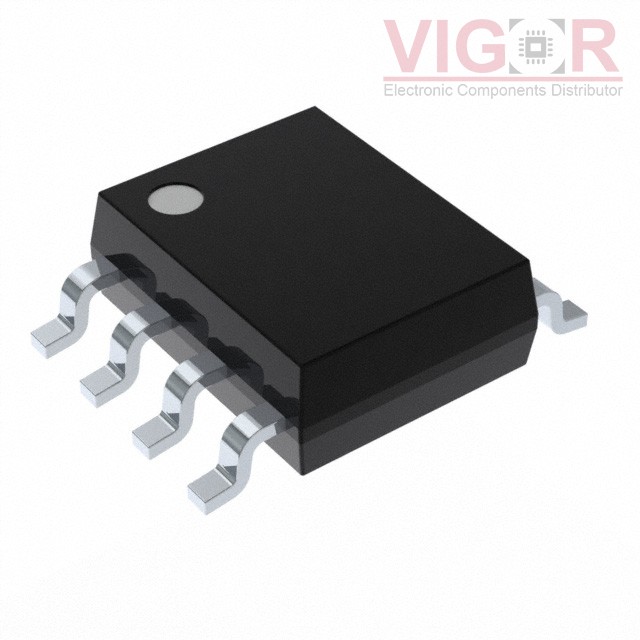

TC4422ESM713

Part No :: TC4422ESM713

Manufacturer: Roving Networks / Microchip Technology

Description: IC GATE DRVR LOW-SIDE 8SOIJ

Catalog: PMIC - Gate Drivers

DataSheet: TC4422ESM713 PDF

Availability: 3589 pieces

Current price of TC4422ESM713 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TC4422ESM713 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Driven Configuration:	Low-Side
Channel Type:	Single
Number of Drivers:	1
Gate Type:	IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply:	4.5V ~ 18V
Logic Voltage - VIL, VIH:	0.8V, 2.4V
Current - Peak Output (Source, Sink):	9A, 9A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	-
Rise / Fall Time (Typ):	60ns, 60ns
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.209", 5.30mm Width)
Supplier Device Package:	8-SOIJ
