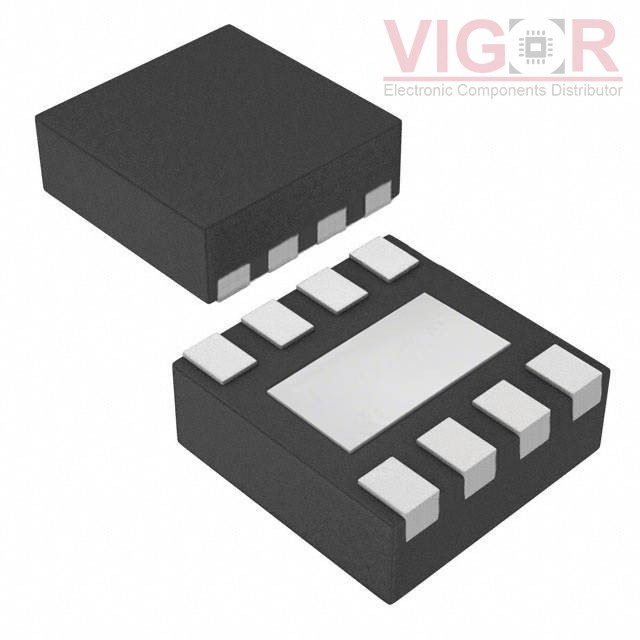

LM5109BQNGTRQ1

Part No :: LM5109BQNGTRQ1

Manufacturer: Texas Instruments

VIGOR # :: 3880622

Description: IC GATE DRVR HALF-BRIDGE 8WSON

Catalog: PMIC - Gate Drivers

DataSheet: LM5109BQNGTRQ1 PDF

Country of origin: -

Date code: -

LM5109BQNGTRQ1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	Independent
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	8V ~ 14V
Logic Voltage - VIL, VIH:	0.8V, 2.2V
Current - Peak Output (Source, Sink):	1A, 1A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	108 V
Rise / Fall Time (Typ):	15ns, 15ns
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-WFDFN Exposed Pad
Supplier Device Package:	8-WSON (4x4)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1284

Shipped from

HK warehouse

Expected Shipping Date

Jan 01 - Jan 05 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.65~~	~~$0.65~~
4500	~~$0.65~~	~~$2 938.37~~

Current price of LM5109BQNGTRQ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

EL7222CSZ-T7

IC GATE DRVR LOW-SIDE 8SOIC

HIP4081AIP

FULL BRIDGE BASED MOSFET DRIVER,

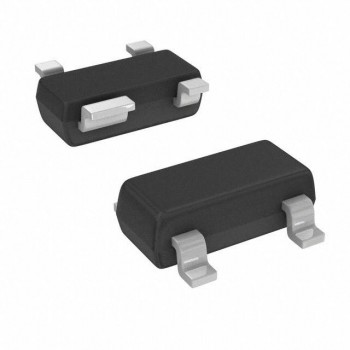

MIC4416YM4-TR
