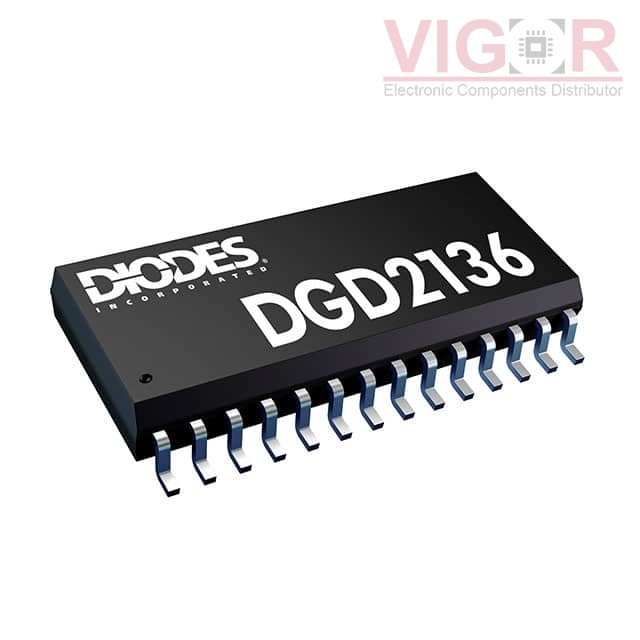

DGD2136MS28-13

Part No :: DGD2136MS28-13

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3881001

Description: IC GATE DRVR HALF-BRIDGE 28SO

Catalog: PMIC - Gate Drivers

DataSheet: DGD2136MS28-13 PDF

Country of origin: -

Date code: -

DGD2136MS28-13 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	3-Phase
Number of Drivers:	6
Gate Type:	IGBT, N-Channel MOSFET
Voltage - Supply:	10V ~ 20V
Logic Voltage - VIL, VIH:	0.8V, 2.4V
Current - Peak Output (Source, Sink):	200mA, 350mA
Input Type:	Inverting
High Side Voltage - Max (Bootstrap):	600 V
Rise / Fall Time (Typ):	90ns, 35ns
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	28-SO
