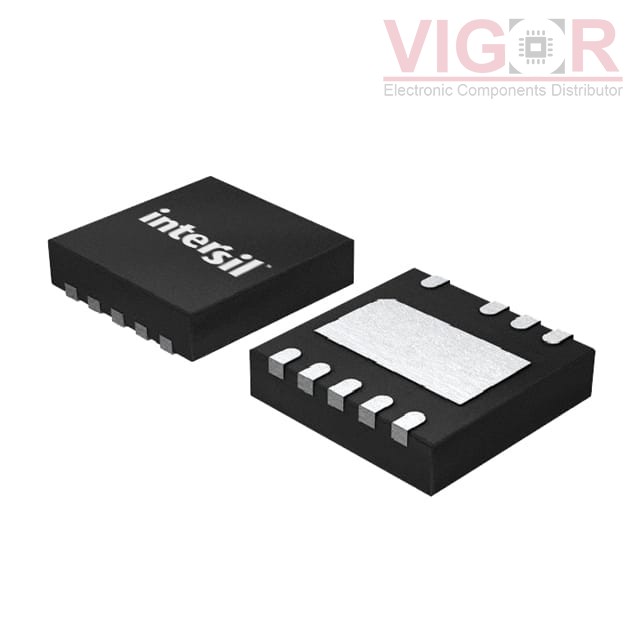

ISL78420ARTBZ-T

Part No :: ISL78420ARTBZ-T

Manufacturer: Intersil (Renesas Electronics America)

VIGOR # :: 4908987

Description: IC GATE DRVR HALF-BRIDGE 9TDFN

Catalog: PMIC - Gate Drivers

DataSheet: ISL78420ARTBZ-T PDF

Country of origin: -

Date code: -

ISL78420ARTBZ-T Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Driven Configuration:	Half-Bridge
Channel Type:	Synchronous
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	8V ~ 14V
Logic Voltage - VIL, VIH:	1.8V, 4V
Current - Peak Output (Source, Sink):	2A, 2A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	114 V
Rise / Fall Time (Typ):	10ns, 10ns
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	9-WDFN Exposed Pad
Supplier Device Package:	9-TDFN (4x4)
