E-L6569D

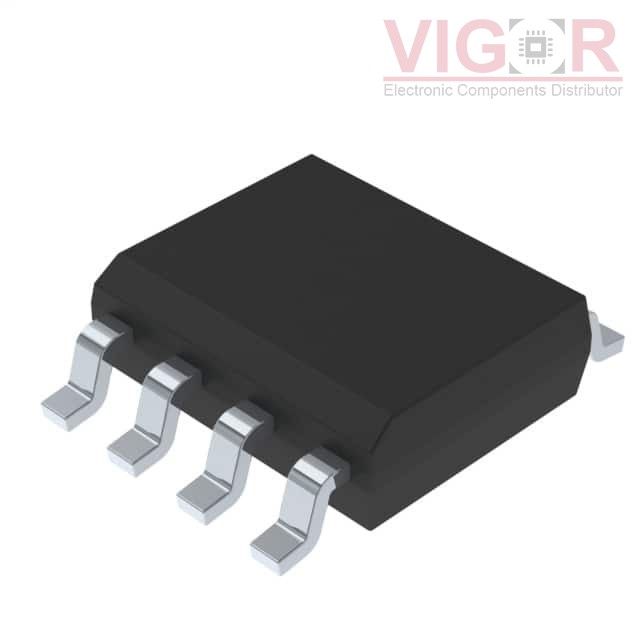

Image is for reference,
please contact us to get the real picture

Part No :: E-L6569D

Manufacturer: STMicroelectronics

Description: IC GATE DRVR HALF-BRIDGE 8SO

Catalog: PMIC - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Oct 10 - Oct 14 2025

DataSheet: E-L6569D PDF

Availability: 377 pieces

Unit Price: ~~$0.00000~~

Current price of E-L6569D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

E-L6569D Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Driven Configuration:	Half-Bridge
Channel Type:	Synchronous
Number of Drivers:	2
Gate Type:	IGBT, N-Channel MOSFET
Voltage - Supply:	10V ~ 16.6V
Logic Voltage - VIL, VIH:	-
Current - Peak Output (Source, Sink):	170mA, 270mA
Input Type:	RC Input Circuit
High Side Voltage - Max (Bootstrap):	600 V
Rise / Fall Time (Typ):	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SO
