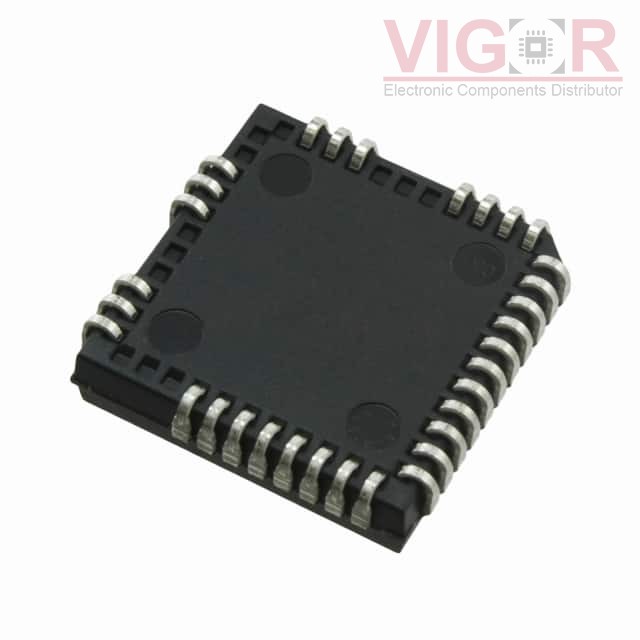

IR2235JTR

Part No :: IR2235JTR

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4909225

Description: IC GATE DRVR HALF-BRIDGE 44PLCC

Catalog: PMIC - Gate Drivers

DataSheet: IR2235JTR PDF

Country of origin: -

Date code: -

IR2235JTR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Driven Configuration:	Half-Bridge
Channel Type:	3-Phase
Number of Drivers:	6
Gate Type:	IGBT, N-Channel MOSFET
Voltage - Supply:	10V ~ 20V
Logic Voltage - VIL, VIH:	0.8V, 2V
Current - Peak Output (Source, Sink):	250mA, 500mA
Input Type:	Inverting
High Side Voltage - Max (Bootstrap):	1200 V
Rise / Fall Time (Typ):	90ns, 40ns
Operating Temperature:	125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	44-LCC (J-Lead), 32 Leads
Supplier Device Package:	44-PLCC, 32 Leads (16.58x16.58)
