LM5100M/NOPB

Part No :: LM5100M/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 4909391

Description: IC GATE DRVR HALF-BRIDGE 8SOIC

Catalog: PMIC - Gate Drivers

DataSheet: LM5100M/NOPB PDF

Country of origin: -

Date code: -

LM5100M/NOPB Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Driven Configuration:	Half-Bridge
Channel Type:	Independent
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	9V ~ 14V
Logic Voltage - VIL, VIH:	3V, 8V
Current - Peak Output (Source, Sink):	1.6A, 1.6A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	118 V
Rise / Fall Time (Typ):	600ns, 600ns
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1402

Shipped from

HK warehouse

Expected Shipping Date

Jan 27 - Jan 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of LM5100M/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TC426EUA713

IC GATE DRVR LOW-SIDE 8MSOP

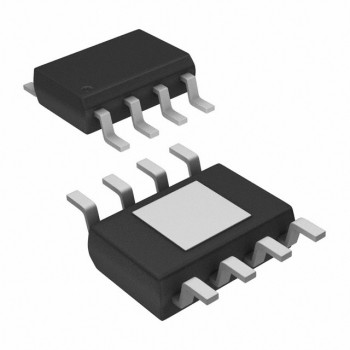

ISL6613AECB
