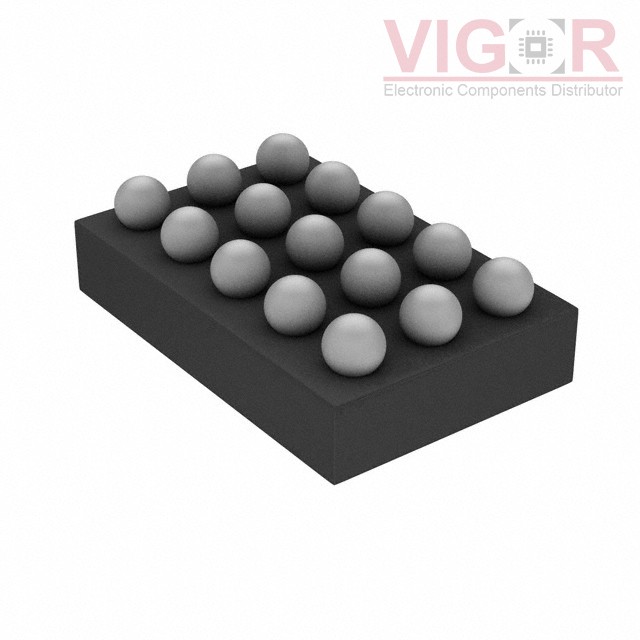

MAX20307EWL+

Part No :: MAX20307EWL+

Manufacturer: Maxim Integrated

VIGOR # :: 4909532

Description: IC GATE DRVR HALF-BRIDGE 15WLP

Catalog: PMIC - Gate Drivers

DataSheet: MAX20307EWL+ PDF

Country of origin: -

Date code: -

MAX20307EWL+ Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Obsolete
Driven Configuration:	Half-Bridge
Channel Type:	Synchronous
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	4.5V ~ 5.5V
Logic Voltage - VIL, VIH:	0.4V, 1.6V
Current - Peak Output (Source, Sink):	1A, 5A
Input Type:	TTL
High Side Voltage - Max (Bootstrap):	60 V
Rise / Fall Time (Typ):	5ns, 1ns
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	15-WFBGA, WLBGA
Supplier Device Package:	15-WLP (1.22x2.05)
