IR2136JTR

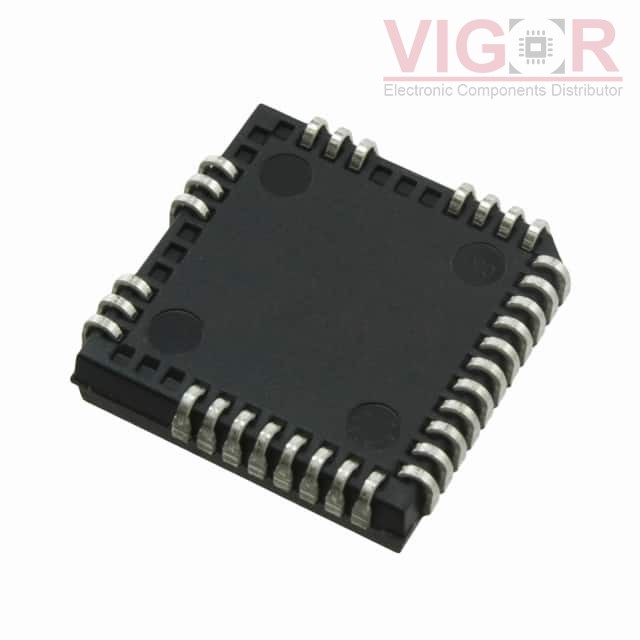

Product image
Product thumb
Part No :

IR2136JTR

Manufacturer
IR (Infineon Technologies)
VIGOR # :

4909602

Description
IC GATE DRVR HALF-BRIDGE 44PLCC
Catalog
PMIC - Gate Drivers
DataSheet
IR2136JTR PDF
Country of origin
-
Date code
-
ads
IR2136JTR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Driven Configuration:Half-Bridge
Channel Type:3-Phase
Number of Drivers:6
Gate Type:IGBT, N-Channel MOSFET
Voltage - Supply:10V ~ 20V
Logic Voltage - VIL, VIH:0.8V, 3V
Current - Peak Output (Source, Sink):200mA, 350mA
Input Type:Inverting
High Side Voltage - Max (Bootstrap):600 V
Rise / Fall Time (Typ):125ns, 50ns
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:44-LCC (J-Lead), 32 Leads
Supplier Device Package:44-PLCC, 32 Leads (16.58x16.58)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 126
Shipped from
HK warehouse
Expected Shipping Date
Oct 30 - Nov 03 2026
Pricing(USD)
Quantity Unit Price Ext. Price

Current price of IR2136JTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
IR21141SSPBF

IR21141SSPBF

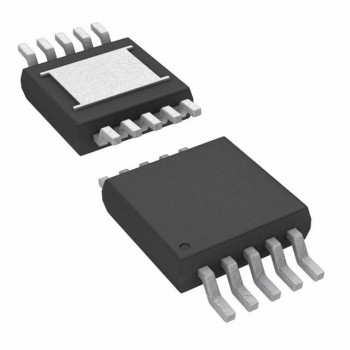

IC GATE DRVR HALF-BRIDGE 24SSOP
