ZL1505ALNNT

Part No :: ZL1505ALNNT

Manufacturer: Intersil (Renesas Electronics America)

VIGOR # :: 4909930

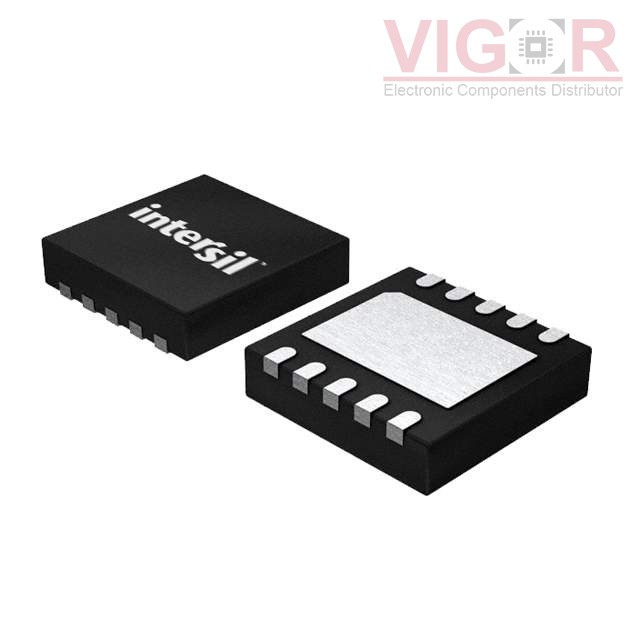

Description: IC GATE DRVR HALF-BRIDGE 10DFN

Catalog: PMIC - Gate Drivers

DataSheet: ZL1505ALNNT PDF

Country of origin: -

Date code: -

ZL1505ALNNT Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Driven Configuration:	Half-Bridge
Channel Type:	Independent
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	4.5V ~ 7.5V
Logic Voltage - VIL, VIH:	1.7V, 3.4V
Current - Peak Output (Source, Sink):	3.2A, 3.2A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	30 V
Rise / Fall Time (Typ):	5.3ns, 4.8ns
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	10-VFDFN Exposed Pad
Supplier Device Package:	10-DFN (3x3)
