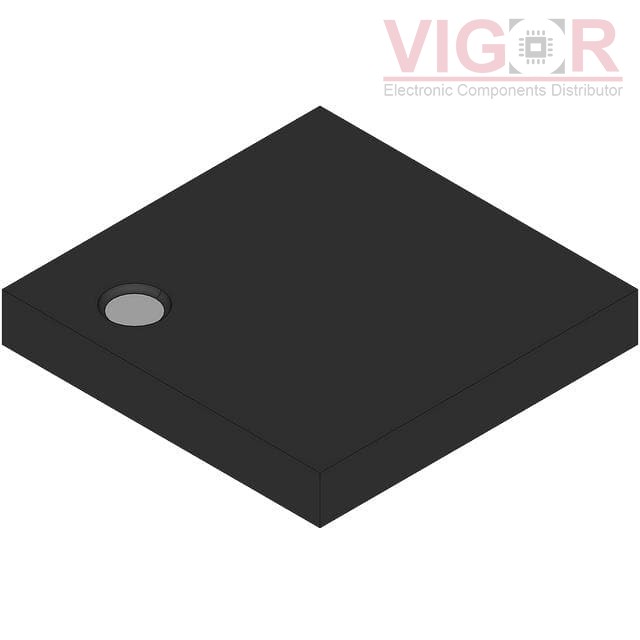

LM3503SQ-25

Part No :: LM3503SQ-25

Manufacturer: VIGOR

VIGOR # :: 3922460

Description: LED DRIVER, 10-SEGMENT

Catalog: PMIC - LED Drivers

DataSheet: LM3503SQ-25 PDF

Country of origin: -

Date code: -

LM3503SQ-25 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	DC DC Regulator
Topology:	Step-Up (Boost)
Internal Switch(s):	Yes
Number of Outputs:	2
Voltage - Supply (Min):	2.5V
Voltage - Supply (Max):	5.5V
Voltage - Output:	25V
Current - Output / Channel:	600mA (Switch)
Frequency:	1MHz
Dimming:	Analog, PWM
Applications:	Backlight
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-WFQFN Exposed Pad
Supplier Device Package:	16-WQFN (4x4)
