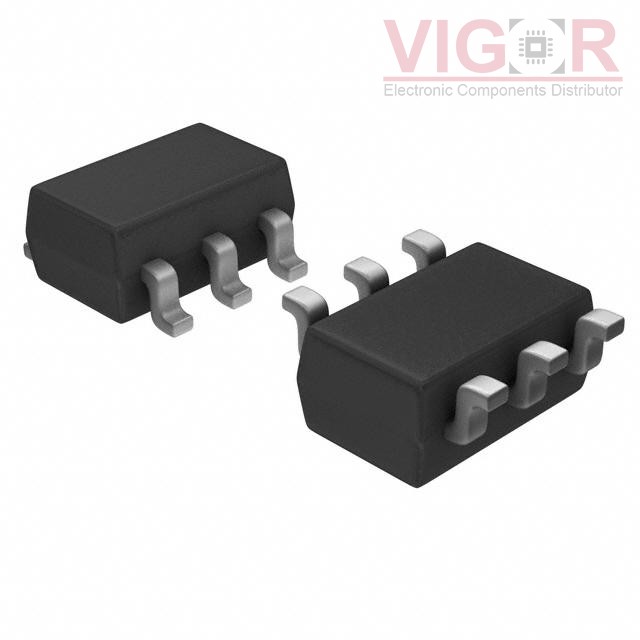

FAN5346S20X

Part No :: FAN5346S20X

Manufacturer: VIGOR

VIGOR # :: 3922852

Description: LED DISPLAY DRIVER, PDSO6

Catalog: PMIC - LED Drivers

DataSheet: FAN5346S20X PDF

Country of origin: -

Date code: -

FAN5346S20X Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	DC DC Regulator
Topology:	Step-Up (Boost)
Internal Switch(s):	Yes
Number of Outputs:	1
Voltage - Supply (Min):	2.5V
Voltage - Supply (Max):	5.5V
Voltage - Output:	20V
Current - Output / Channel:	25mA
Frequency:	1.2MHz
Dimming:	PWM
Applications:	Backlight
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package:	SuperSOT™-6

Alternative Products

Part Number	Manufacturer & Description	Compare
BD6586MUV-E2 Match 85%	ROHM Semiconductor IC LED DRIVER RGLTR DIM 24VQFN	FAN5346S20X vs BD6586MUV-E2
TPS61185RGER Match 100%	Texas Instruments IC LED DRIVER RGLTR DIM 24VQFN	FAN5346S20X vs TPS61185RGER
TPS60231RGTR Match 85%	VIGOR TPS60231 3-CHANNEL, CURRENT-REGU	FAN5346S20X vs TPS60231RGTR
TPS60230RGTTG4 Match 85%	Texas Instruments IC LED DRVR RGLTR DIM 25MA 16QFN	FAN5346S20X vs TPS60230RGTTG4
CAT3648HV3-GT2 Match 100%	Sanyo Semiconductor/ON Semiconductor IC LED DRIVER RGLTR DIM 16TQFN	FAN5346S20X vs CAT3648HV3-GT2
FAN5341UMPX Match 100%	VIGOR LED DRIVER, SERIES BOOST, WITH I	FAN5346S20X vs FAN5341UMPX
