TLE75242ESHXUMA1

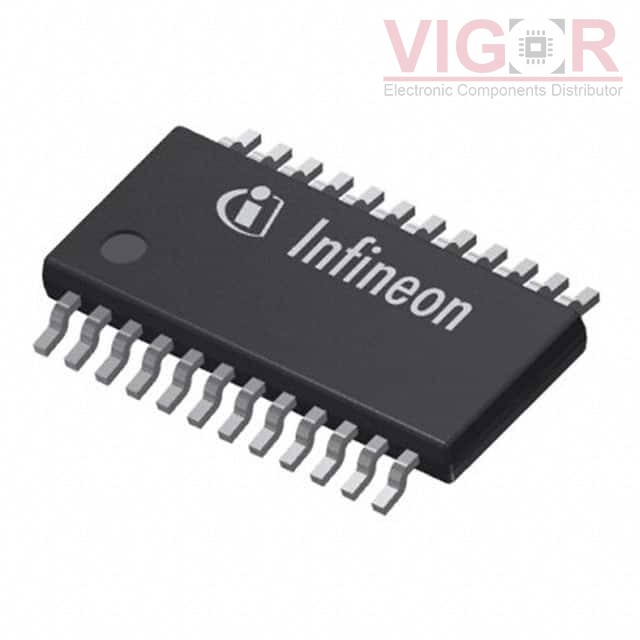

Image is for reference,
please contact us to get the real picture

Part No :: TLE75242ESHXUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC PWR DRVR N-CHAN 1:8 TSDSO-24

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: TLE75242ESHXUMA1 PDF

Availability: 2921 pieces

Unit Price: ~~$1.99850~~

Current price of TLE75242ESHXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLE75242ESHXUMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Type:	Relay, Solenoid Driver
Number of Outputs:	8
Ratio - Input:Output:	1:8
Output Configuration:	High Side or Low Side
Output Type:	N-Channel
Interface:	SPI
Voltage - Load:	3V ~ 28V
Voltage - Supply (Vcc/Vdd):	3V ~ 5.5V
Current - Output (Max):	330mA
Rds On (Typ):	1Ohm
Input Type:	-
Features:	Slew Rate Controlled
Fault Protection:	Open Load Detect, Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TSDSO-24-21
Package / Case:	24-TSSOP (0.154", 3.90mm Width) Exposed Pad
