DML3009LDC-7

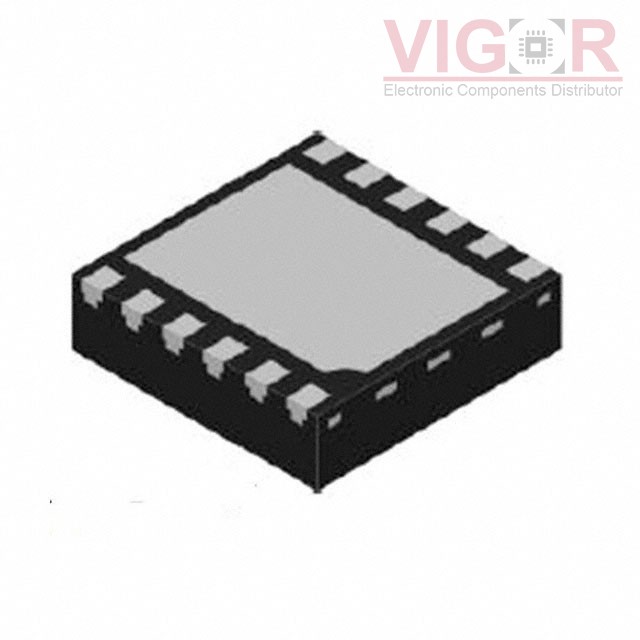

Image is for reference,
please contact us to get the real picture

Part No :: DML3009LDC-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: IC PWR SWITCH N-CHAN 1:1 12VDFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: DML3009LDC-7 PDF

Availability: 146 pieces

Unit Price: ~~$0.72000~~

Current price of DML3009LDC-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DML3009LDC-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	0.5V ~ 13.5V
Voltage - Supply (Vcc/Vdd):	3V ~ 5.5V
Current - Output (Max):	20A
Rds On (Typ):	6.1mOhm
Input Type:	Non-Inverting
Features:	-
Fault Protection:	Short-Circuit, Thermal Shutdown, UVLO
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	V-DFN3030-12 (Type B)
Package / Case:	12-WFDFN Exposed Pad
