BTS72004EPAXUMA1

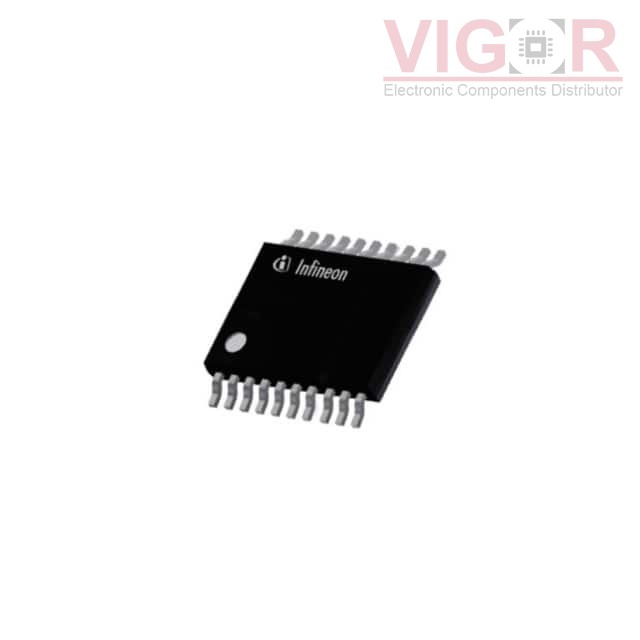

Image is for reference,
please contact us to get the real picture

Part No :: BTS72004EPAXUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC 4CH HIGH SIDE SWITCH

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: BTS72004EPAXUMA1 PDF

Availability: 2889 pieces

Unit Price: ~~$2.21000~~

Current price of BTS72004EPAXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTS72004EPAXUMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q100, PROFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	6V ~ 18V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	1A
Rds On (Typ):	66.5mOhm
Input Type:	Non-Inverting
Features:	-
Fault Protection:	Over Current, Over Voltage, Short Circuit, UVLO
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TSDSO-14
Package / Case:	14-TSSOP (0.154", 3.90mm Width) Exposed Pad

Please confirm the specifications of the products when ordering.
