TPS2556QDRBRQ1

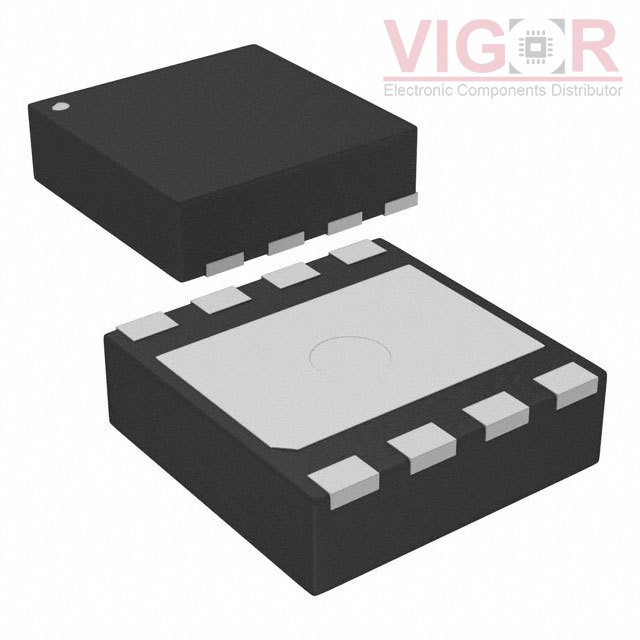

Image is for reference,
please contact us to get the real picture

Part No :: TPS2556QDRBRQ1

Manufacturer: VIGOR

Description: TPS2556-Q1 PRECISION ADJ CURRENT

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: TPS2556QDRBRQ1 PDF

Availability: 15920 pieces

Unit Price: ~~$0.70000~~

Current price of TPS2556QDRBRQ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPS2556QDRBRQ1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Bulk
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	2.5V ~ 6.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	5A
Rds On (Typ):	22mOhm
Input Type:	Non-Inverting
Features:	Slew Rate Controlled, Status Flag
Fault Protection:	Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SON (3x3)
Package / Case:	8-VDFN Exposed Pad

Please confirm the specifications of the products when ordering.
