AP2311ASN-7

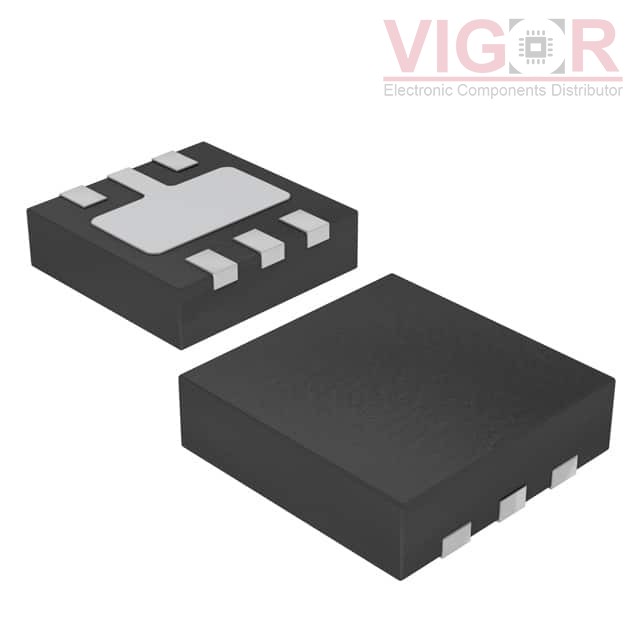

Image is for reference,
please contact us to get the real picture

Part No :: AP2311ASN-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: IC PWR SWITCH P-CHAN 1:1 6UDFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: AP2311ASN-7 PDF

Availability: 3633 pieces

Unit Price: ~~$0.18073~~

Current price of AP2311ASN-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AP2311ASN-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Type:	USB Switch
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	P-Channel
Interface:	On/Off
Voltage - Load:	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	2A
Rds On (Typ):	70mOhm
Input Type:	Non-Inverting
Features:	Load Discharge, Slew Rate Controlled, Status Flag
Fault Protection:	Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	U-DFN2020-6
Package / Case:	6-UDFN Exposed Pad
