TLE7241EXUMA1

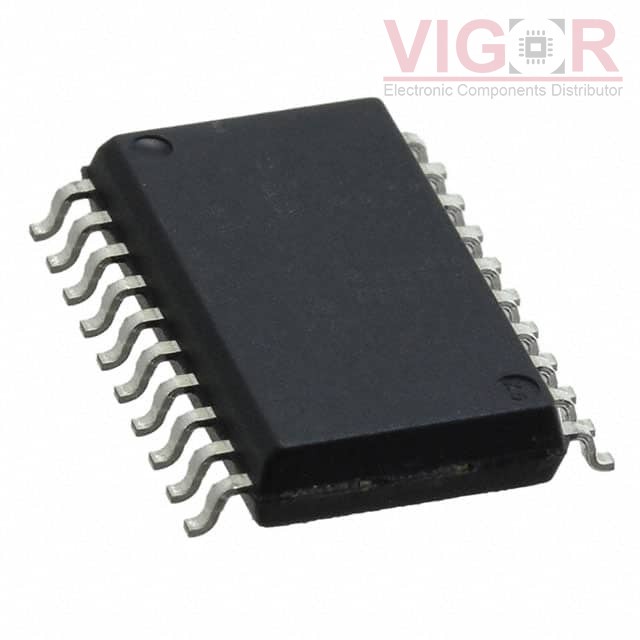

Image is for reference,
please contact us to get the real picture

Part No :: TLE7241EXUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC PWR DRIVER N-CHAN 1:2 DSO-20

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: TLE7241EXUMA1 PDF

Availability: 1235 pieces

Unit Price: ~~$8.33000~~

Current price of TLE7241EXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLE7241EXUMA1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Switch Type:	Relay, Solenoid Driver
Number of Outputs:	2
Ratio - Input:Output:	1:2
Output Configuration:	Low Side
Output Type:	N-Channel
Interface:	SPI
Voltage - Load:	9V ~ 18V
Voltage - Supply (Vcc/Vdd):	4.75V ~ 5.25V
Current - Output (Max):	1.2A
Rds On (Typ):	240mOhm
Input Type:	-
Features:	Slew Rate Controlled
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-DSO-20-27
Package / Case:	20-SOIC (0.295", 7.50mm Width) Exposed Pad

Please confirm the specifications of the products when ordering.
