AP22916BCA4-7

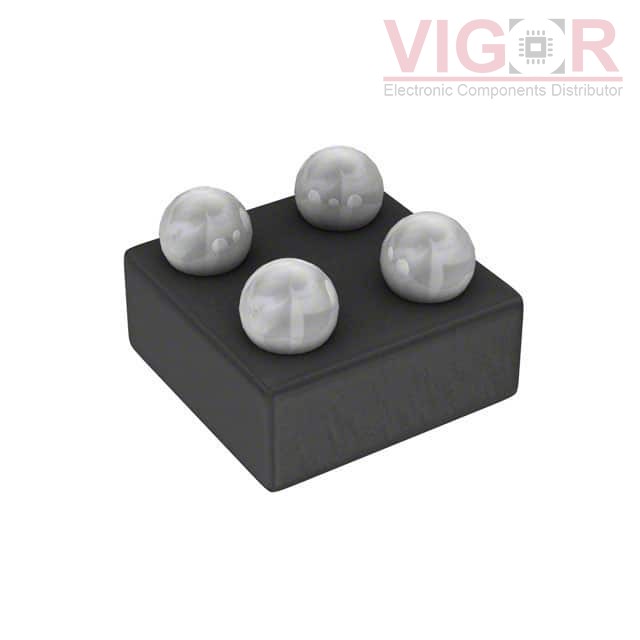

Image is for reference,
please contact us to get the real picture

Part No :: AP22916BCA4-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: LOAD SWITCH X1-WLB0808-4 T&R 3K

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: AP22916BCA4-7 PDF

Availability: 36000 pieces

Unit Price: ~~$0.43000~~

Current price of AP22916BCA4-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AP22916BCA4-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	P-Channel
Interface:	On/Off
Voltage - Load:	1.3V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	2A
Rds On (Typ):	60mOhm
Input Type:	Non-Inverting
Features:	Load Discharge, Slew Rate Controlled
Fault Protection:	Over Temperature, Reverse Current, UVLO
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	X1-WLB0808-4
Package / Case:	4-XFBGA, WLBGA

Please confirm the specifications of the products when ordering.
