MC40XS6500CEKR2

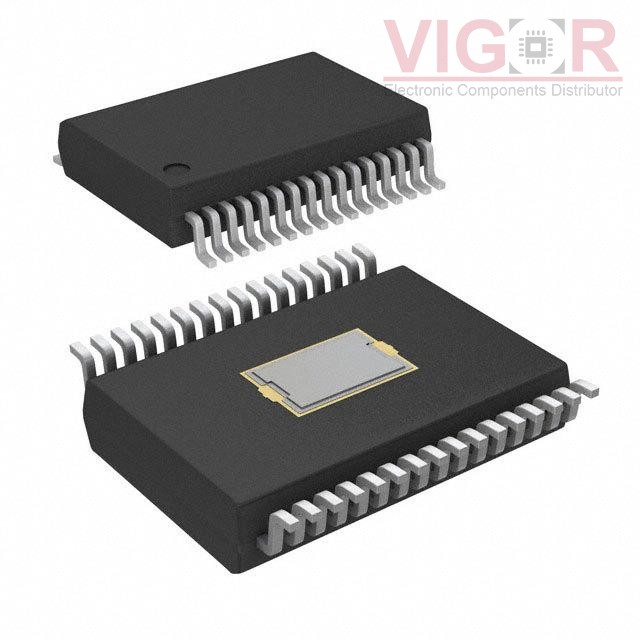

Image is for reference,
please contact us to get the real picture

Part No :: MC40XS6500CEKR2

Manufacturer: NXP Semiconductors

Description: HIGH-SIDE SWITCH 12V PENTA 40MOH

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: MC40XS6500CEKR2 PDF

Availability: 2095 pieces

Unit Price: ~~$7.30482~~

Current price of MC40XS6500CEKR2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MC40XS6500CEKR2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Last Time Buy
Switch Type:	General Purpose
Number of Outputs:	5
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	SPI
Voltage - Load:	7V ~ 18V
Voltage - Supply (Vcc/Vdd):	4.5V ~ 5.5V
Current - Output (Max):	3.9A
Rds On (Typ):	40mOhm
Input Type:	CMOS
Features:	Slew Rate Controlled
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	-
Supplier Device Package:	32-SOIC-EP
Package / Case:	32-SSOP (0.295", 7.50mm Width) Exposed Pad

Please confirm the specifications of the products when ordering.
