BTS70102EPAXUMA1

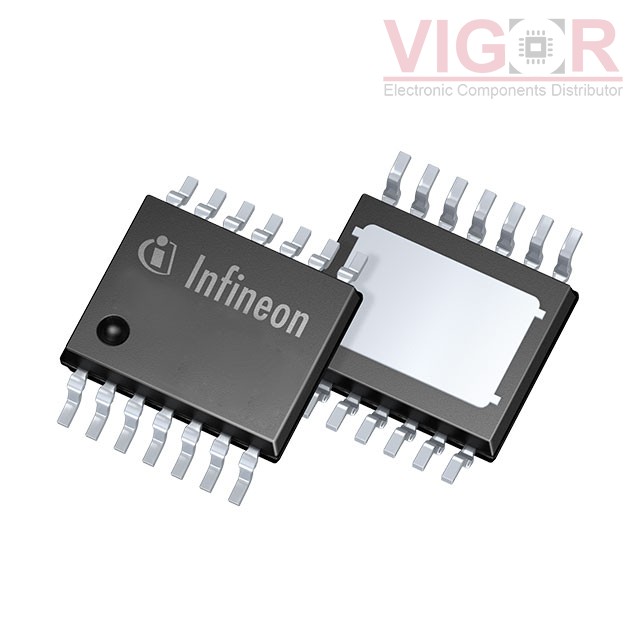

Image is for reference,
please contact us to get the real picture

Part No :: BTS70102EPAXUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC PWR SWTCH N-CHAN 1:1 TSDSO-14

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: BTS70102EPAXUMA1 PDF

Availability: 4360 pieces

Unit Price: ~~$3.21000~~

Current price of BTS70102EPAXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTS70102EPAXUMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q100, PROFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	2
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	3.1V ~ 28V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	6.5A
Rds On (Typ):	9.5mOhm
Input Type:	Non-Inverting
Features:	Slew Rate Controlled
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TSDSO-14-22
Package / Case:	14-TSSOP (0.154", 3.90mm Width) Exposed Pad
