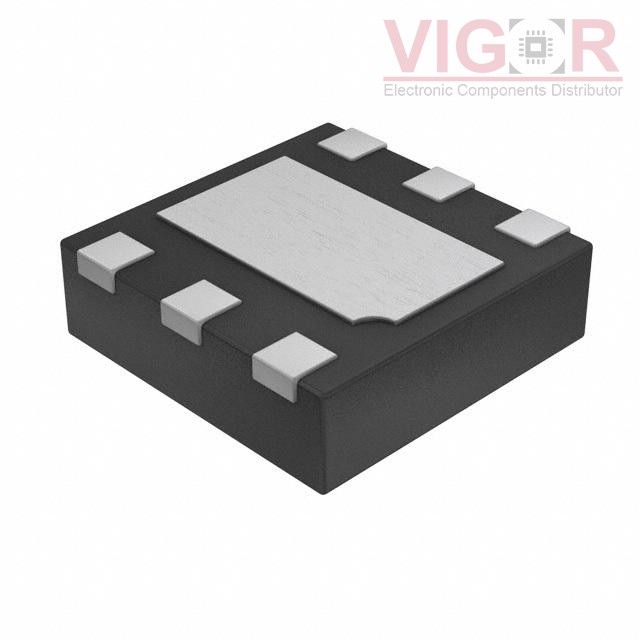

AP2553FDC-7

Part No :: AP2553FDC-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: IC PWR SWITCH P-CHANNEL 1:1 6DFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: AP2553FDC-7 PDF

Availability: 12740 pieces

Unit Price: ~~$0.51000~~

Current price of AP2553FDC-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AP2553FDC-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	P-Channel
Interface:	On/Off
Voltage - Load:	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	2.1A
Rds On (Typ):	80mOhm
Input Type:	Non-Inverting
Features:	Load Discharge, Status Flag
Fault Protection:	Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-DFN2020C (2x2)
Package / Case:	6-UDFN Exposed Pad
