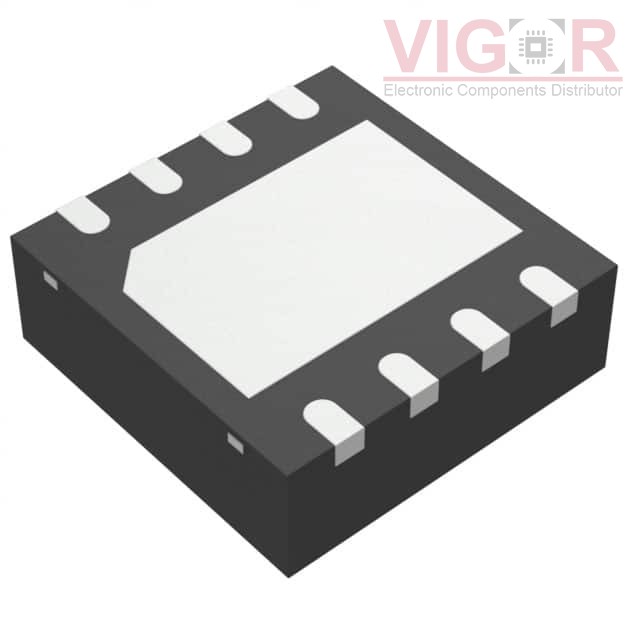

TPS22953DQCR

Part No :: TPS22953DQCR

Manufacturer: Texas Instruments

Description: IC PWR SWITCH N-CHAN 1:1 10WSON

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: TPS22953DQCR PDF

Availability: 6393 pieces

Unit Price: ~~$0.89000~~

Current price of TPS22953DQCR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPS22953DQCR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	2.5V ~ 5.7V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	5A
Rds On (Typ):	14mOhm
Input Type:	Non-Inverting
Features:	Auto Restart, Power Good, Slew Rate Controlled
Fault Protection:	Over Temperature, Reverse Current, UVLO
Operating Temperature:	-40°C ~ 105°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	10-WSON (3x2)
Package / Case:	10-WFDFN Exposed Pad

Please confirm the specifications of the products when ordering.
