NCP3902FCCTBG

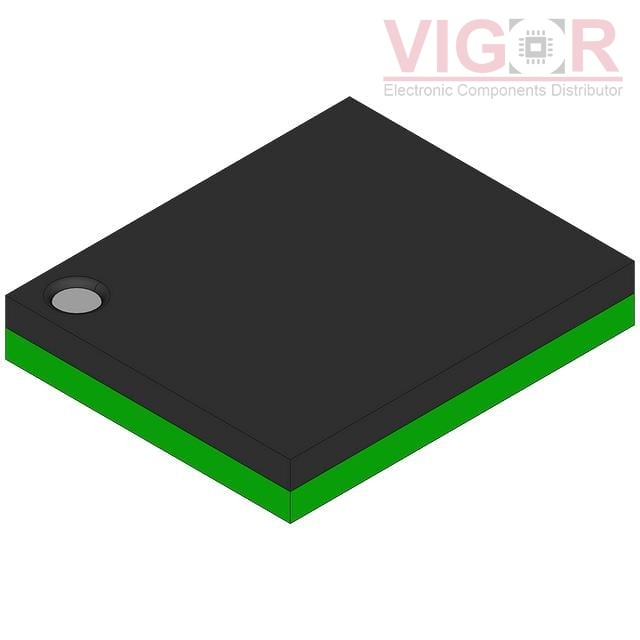

Image is for reference,
please contact us to get the real picture

Part No :: NCP3902FCCTBG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC PWR SWITCH P-CHAN 2:1 20WLCSP

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: NCP3902FCCTBG PDF

Availability: 621 pieces

Unit Price: ~~$0.66000~~

Current price of NCP3902FCCTBG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NCP3902FCCTBG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	2:1
Output Configuration:	High Side
Output Type:	P-Channel
Interface:	USB
Voltage - Load:	2.3V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	9V ~ 15V
Current - Output (Max):	5A
Rds On (Typ):	95mOhm
Input Type:	Differential
Features:	Sleep Mode
Fault Protection:	Current Limiting, Over Temperature, UVLO
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	20-WLCSP (1.66x2.26)
Package / Case:	20-UFBGA, WLCSP

Please confirm the specifications of the products when ordering.
