NCP380LMU20AATBG

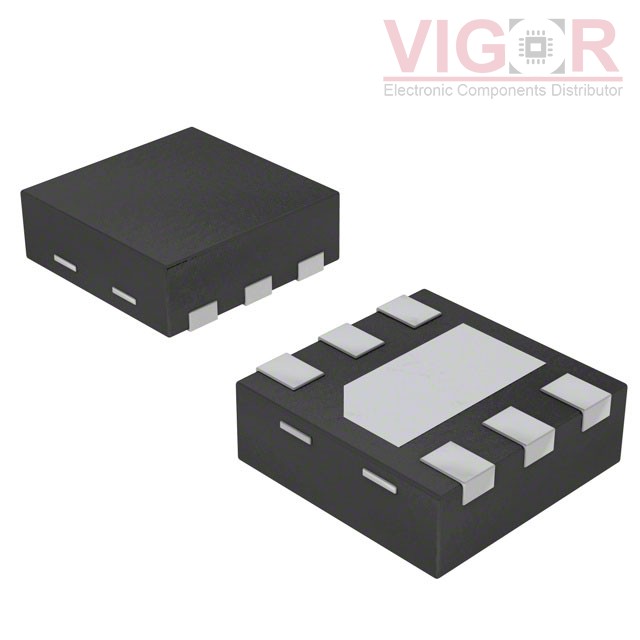

Image is for reference,
please contact us to get the real picture

Part No :: NCP380LMU20AATBG

Manufacturer: VIGOR

Description: POWER SUPPLY SUPPORT CIRCUIT, FI

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: NCP380LMU20AATBG PDF

Availability: 293 pieces

Unit Price: ~~$0.21000~~

Current price of NCP380LMU20AATBG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NCP380LMU20AATBG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	P-Channel
Interface:	On/Off
Voltage - Load:	2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	2A
Rds On (Typ):	55mOhm
Input Type:	Non-Inverting
Features:	Slew Rate Controlled, Status Flag
Fault Protection:	Current Limiting (Fixed), UVLO
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	6-UDFN (2x2)
Package / Case:	6-UDFN Exposed Pad

Please confirm the specifications of the products when ordering.
