AP22850SH8-7

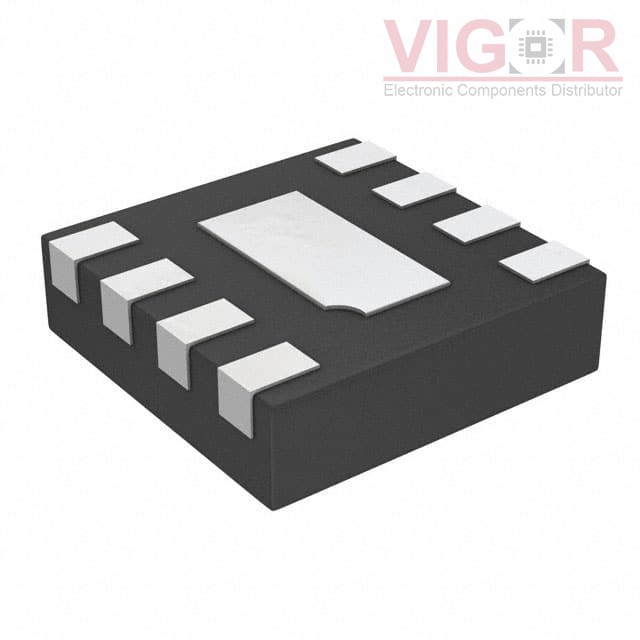

Image is for reference,
please contact us to get the real picture

Part No :: AP22850SH8-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: IC PWR SWITCH P-CHAN 1:1 8WDFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: AP22850SH8-7 PDF

Availability: 2200 pieces

Unit Price: ~~$0.85000~~

Current price of AP22850SH8-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AP22850SH8-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	P-Channel
Interface:	On/Off
Voltage - Load:	4.5V ~ 11V
Voltage - Supply (Vcc/Vdd):	2.5V ~ 5.5V
Current - Output (Max):	8A
Rds On (Typ):	21mOhm
Input Type:	-
Features:	Load Discharge, Power Good, Slew Rate Controlled
Fault Protection:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	8-WDFN (2x2)
Package / Case:	8-VFDFN Exposed Pad

Please confirm the specifications of the products when ordering.
