VNQ5E160KTR-E

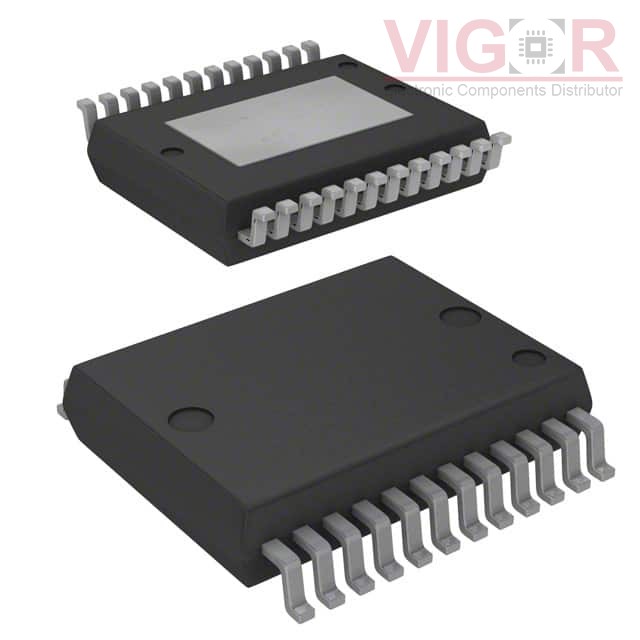

Image is for reference,
please contact us to get the real picture

Part No :: VNQ5E160KTR-E

Manufacturer: STMicroelectronics

Description: IC PWR SWTCH N-CHAN 1:1 PWRSSO24

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: VNQ5E160KTR-E PDF

Availability: 429 pieces

Unit Price: ~~$3.67000~~

Current price of VNQ5E160KTR-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VNQ5E160KTR-E Specifications

Type	Description
Series:	VIPower™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	4
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	4.5V ~ 28V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	7A
Rds On (Typ):	160mOhm (Max)
Input Type:	Non-Inverting
Features:	Auto Restart
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerSSO-24™
Package / Case:	24-SOP (0.295", 7.50mm Width) Exposed Pad
