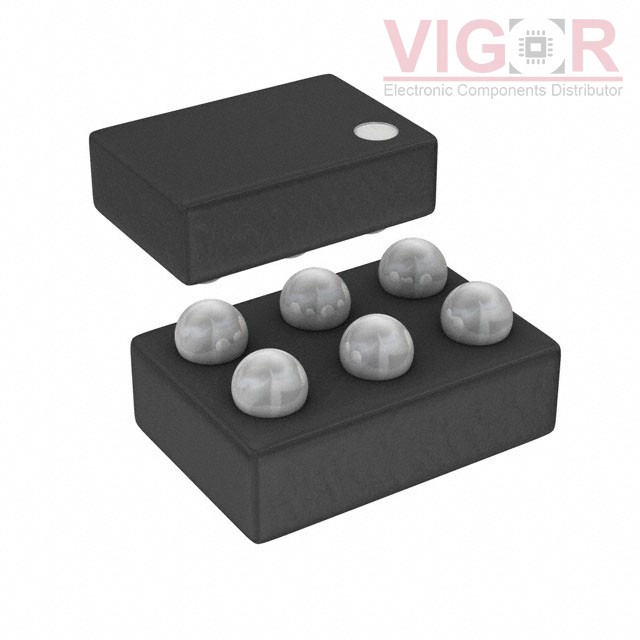

ADP197ACBZ-01-R7

Image is for reference,
please contact us to get the real picture

Part No :: ADP197ACBZ-01-R7

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC PWR SWITCH N-CHAN 1:1 6WLCSP

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: ADP197ACBZ-01-R7 PDF

Availability: 3492 pieces

Unit Price: ~~$1.61000~~

Current price of ADP197ACBZ-01-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADP197ACBZ-01-R7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	3A
Rds On (Typ):	12mOhm
Input Type:	Non-Inverting
Features:	Slew Rate Controlled
Fault Protection:	Over Temperature
Operating Temperature:	-40°C ~ 105°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-WLCSP (1.45x0.95)
Package / Case:	6-WFBGA, WLCSP
