MC07XSG517EKR2

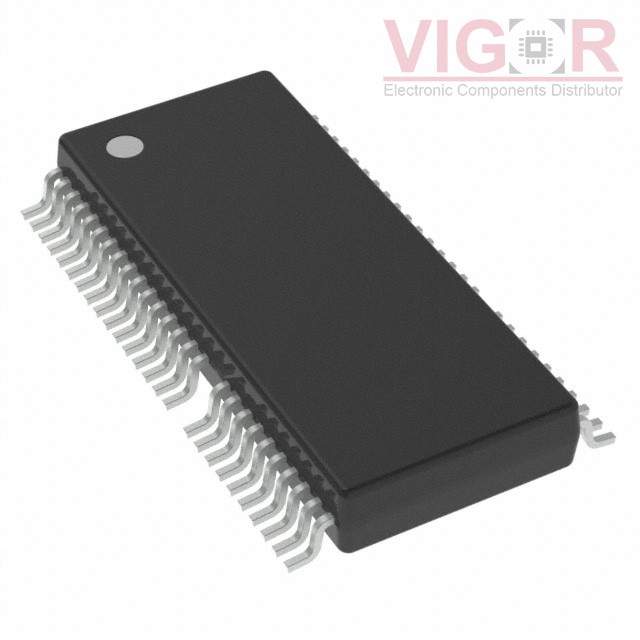

Image is for reference,
please contact us to get the real picture

Part No :: MC07XSG517EKR2

Manufacturer: NXP Semiconductors

Description: IC PWR SWITCH N-CHAN 1:1 54HSOP

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: MC07XSG517EKR2 PDF

Availability: 4147 pieces

Unit Price: ~~$9.63792~~

Current price of MC07XSG517EKR2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MC07XSG517EKR2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Last Time Buy
Switch Type:	General Purpose
Number of Outputs:	6
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	SPI
Voltage - Load:	7V ~ 30V
Voltage - Supply (Vcc/Vdd):	4.5V ~ 5.5V
Current - Output (Max):	5.5A, 11A
Rds On (Typ):	7mOhm, 17mOhm
Input Type:	-
Features:	Internal PWM
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	54-HSOP
Package / Case:	54-SSOP (0.295", 7.50mm Width) Exposed Pad

Please confirm the specifications of the products when ordering.
