NCP45523IMNTWG-L

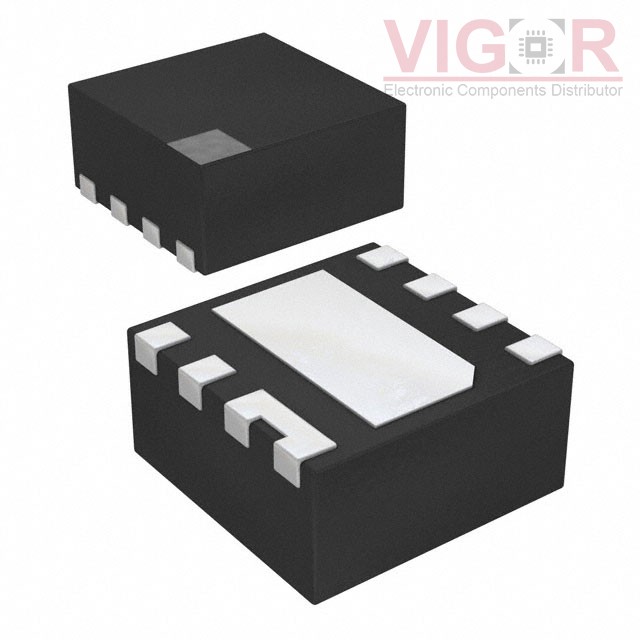

Image is for reference,
please contact us to get the real picture

Part No :: NCP45523IMNTWG-L

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC PWR SWITCH N-CHAN 1:1 8DFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: NCP45523IMNTWG-L PDF

Availability: 434 pieces

Unit Price: ~~$0.45000~~

Current price of NCP45523IMNTWG-L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NCP45523IMNTWG-L Specifications

Type	Description
Series:	ecoSWITCH™
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	-
Output Type:	N-Channel
Interface:	-
Voltage - Load:	0.5V ~ 13.5V
Voltage - Supply (Vcc/Vdd):	3V ~ 5.5V
Current - Output (Max):	6A
Rds On (Typ):	21.9mOhm
Input Type:	Non-Inverting
Features:	-
Fault Protection:	Current Limiting (Fixed), Over Temperature
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	8-DFN (2x2)
Package / Case:	8-VFDFN Exposed Pad
