MC20XS4200BAFKR2

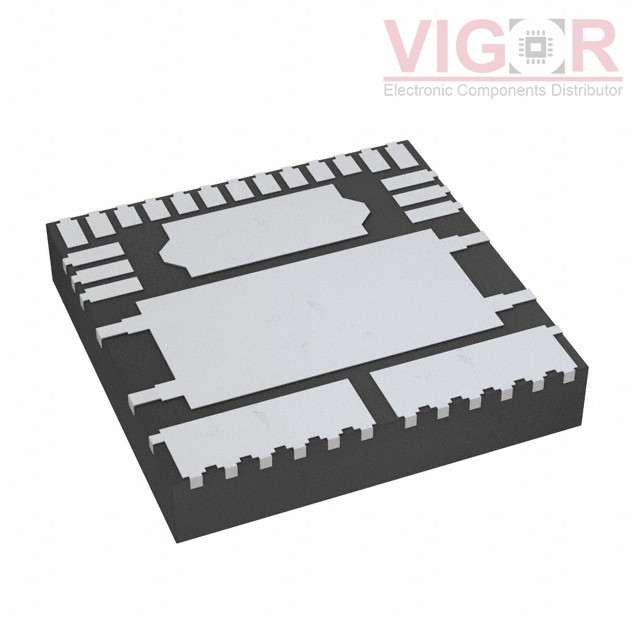

Part No :: MC20XS4200BAFKR2

Manufacturer: NXP Semiconductors

VIGOR # :: 3866628

Description: IC PWR SWITCH N-CHAN 1:1 23PQFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: MC20XS4200BAFKR2 PDF

Country of origin: -

Date code: -

MC20XS4200BAFKR2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Last Time Buy
Switch Type:	General Purpose
Number of Outputs:	2
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	SPI
Voltage - Load:	8V ~ 36V
Voltage - Supply (Vcc/Vdd):	3V ~ 5.5V
Current - Output (Max):	3A
Rds On (Typ):	20mOhm (Max)
Input Type:	-
Features:	Internal PWM, Slew Rate Controlled, Watchdog Timer
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	23-PQFN (12x12)
Package / Case:	23-PowerQFN
