NCP302040MNTWG

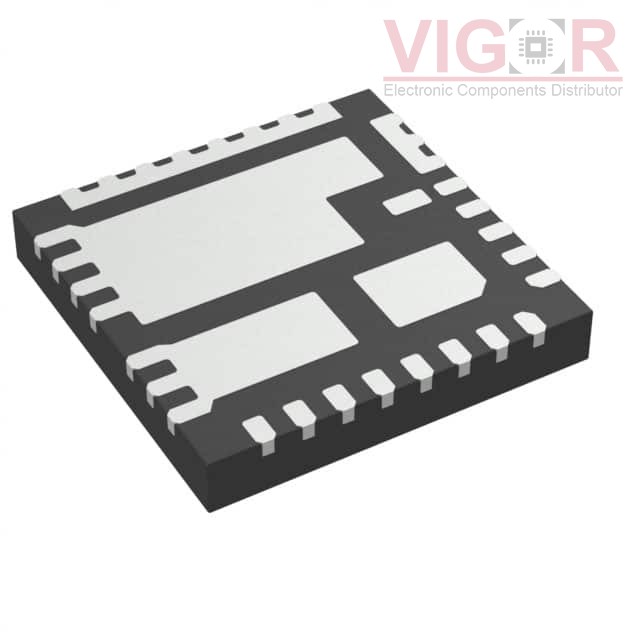

Image is for reference,
please contact us to get the real picture

Part No :: NCP302040MNTWG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC PWR DRIVER P-CHAN 2:1 31PQFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: NCP302040MNTWG PDF

Availability: 478 pieces

Unit Price: ~~$1.00500~~

Current price of NCP302040MNTWG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NCP302040MNTWG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	2
Ratio - Input:Output:	2:1
Output Configuration:	High Side
Output Type:	P-Channel
Interface:	USB
Voltage - Load:	2.3V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	9V ~ 15V
Current - Output (Max):	5A
Rds On (Typ):	95mOhm
Input Type:	Differential
Features:	Sleep Mode
Fault Protection:	Current Limiting, Over Temperature, UVLO
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	31-PQFN (5x5)
Package / Case:	31-PowerWFQFN

Please confirm the specifications of the products when ordering.
