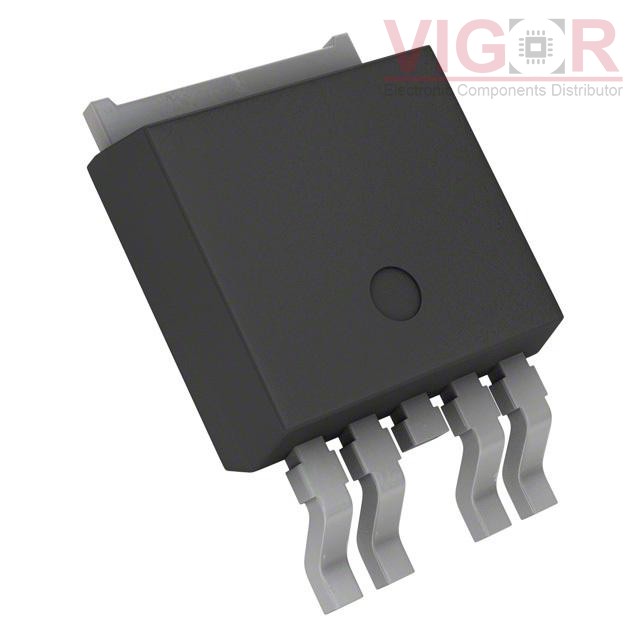

FDDS100H06

Part No :: FDDS100H06

Manufacturer: VIGOR

Description: N CHANNEL , SMART HIGH SIDE SWIT

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: FDDS100H06 PDF

Availability: 869 pieces

Unit Price: ~~$133.33000~~

Current price of FDDS100H06 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDDS100H06 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	5.5V ~ 37V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	2.8A
Rds On (Typ):	80mOhm
Input Type:	Non-Inverting
Features:	Auto Restart
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-252-4L
Package / Case:	TO-252-5, DPak (4 Leads + Tab), TO-252AD
