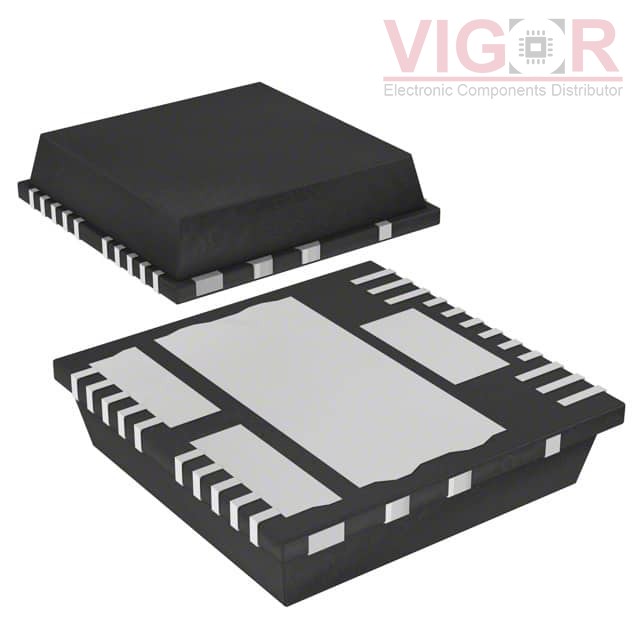

VND5E004ATR-E

Part No :: VND5E004ATR-E

Manufacturer: STMicroelectronics

VIGOR # :: 3867218

Description: IC PWR SWITCH N-CHAN 1:1 24PQFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: VND5E004ATR-E PDF

Current price of VND5E004ATR-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VND5E004ATR-E Specifications

Type	Description
Series:	VIPower™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	2
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	4.5V ~ 28V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	65A
Rds On (Typ):	3mOhm
Input Type:	Non-Inverting
Features:	Auto Restart
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	24-PQFN (12x12)
Package / Case:	24-PowerDFN
