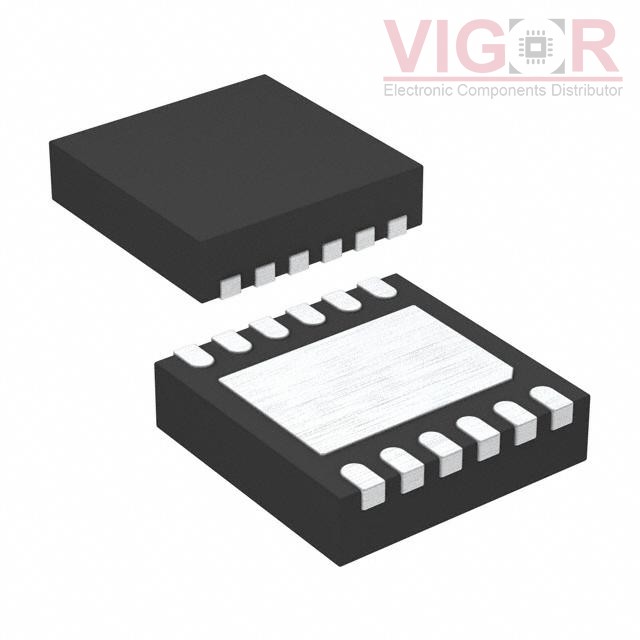

NCP45560IMNTWG-H

Part No :: NCP45560IMNTWG-H

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3867513

Description: IC PWR SWITCH N-CHAN 1:1 12DFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: NCP45560IMNTWG-H PDF

Country of origin: -

Date code: -

NCP45560IMNTWG-H Specifications

Type	Description
Series:	ecoSWITCH™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	0.5V ~ 13.5V
Voltage - Supply (Vcc/Vdd):	3V ~ 5.5V
Current - Output (Max):	24A
Rds On (Typ):	3.2mOhm
Input Type:	Non-Inverting
Features:	Power Good, Slew Rate Controlled
Fault Protection:	Over Temperature, UVLO
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	12-DFN (3x3)
Package / Case:	12-VFDFN Exposed Pad
