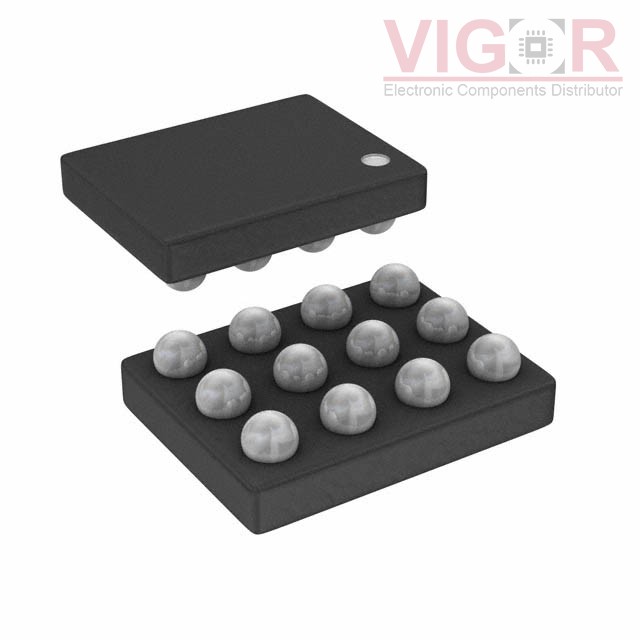

ADP1190AACBZ-R7

Part No :: ADP1190AACBZ-R7

Manufacturer: VIGOR

Description: INTEGRATED 500MA LOAD SWITCH WIT

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: ADP1190AACBZ-R7 PDF

Availability: 28656 pieces

Current price of ADP1190AACBZ-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADP1190AACBZ-R7 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	5 (4 Signal)
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	P-Channel
Interface:	On/Off
Voltage - Load:	1.4V ~ 3.6V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	1A
Rds On (Typ):	65mOhm
Input Type:	Non-Inverting
Features:	Load Discharge
Fault Protection:	-
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	12-WLCSP (1.20x1.60)
Package / Case:	12-UFBGA, WLCSP

Please confirm the specifications of the products when ordering.
