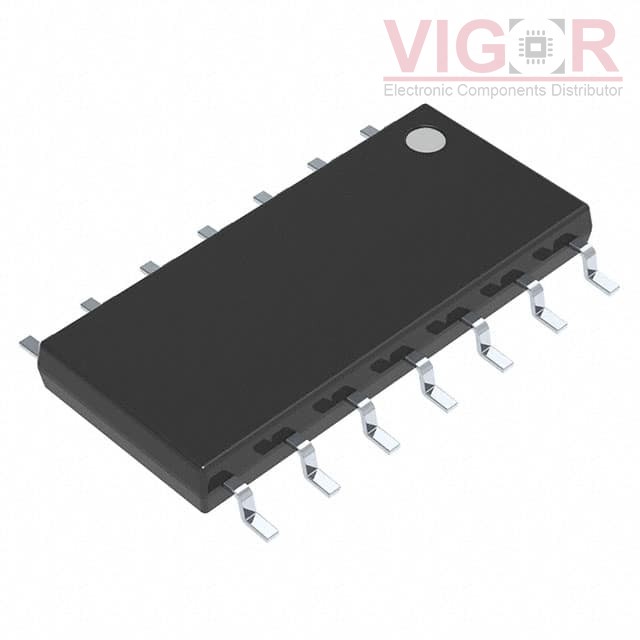

BTT60301ERAXUMA1

Part No :: BTT60301ERAXUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC PWR SWITCH N-CHAN 1:1 TDSO-14

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: BTT60301ERAXUMA1 PDF

Availability: 1649 pieces

Current price of BTT60301ERAXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTT60301ERAXUMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q100, PROFET®
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	5V ~ 36V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	6A
Rds On (Typ):	31mOhm
Input Type:	Non-Inverting
Features:	-
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TDSO-14-11
Package / Case:	14-SOIC (0.154", 3.90mm Width) Exposed Pad

Please confirm the specifications of the products when ordering.
