BTS500402SFAXUMA1

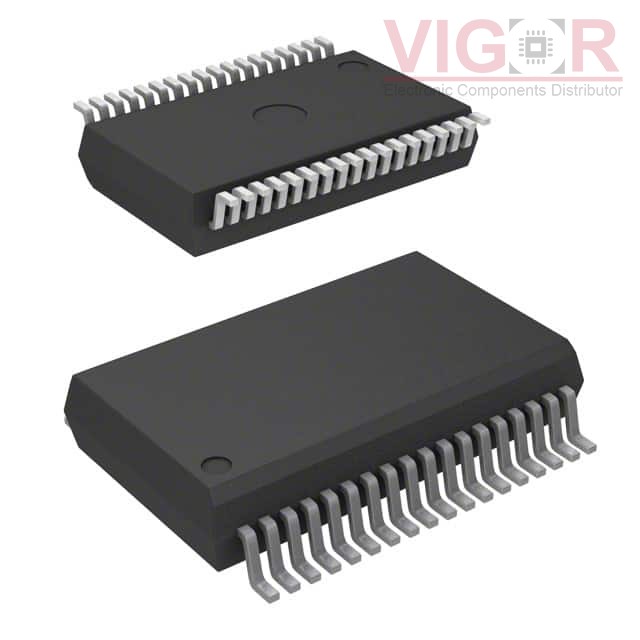

Image is for reference,
please contact us to get the real picture

Part No :: BTS500402SFAXUMA1

Manufacturer: VIGOR

Description: SMART HIGH SIDE SWITCH PROFET

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: BTS500402SFAXUMA1 PDF

Availability: 1000 pieces

Unit Price: ~~$3.18000~~

Current price of BTS500402SFAXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTS500402SFAXUMA1 Specifications

Type	Description
Series:	PROFET®
Package:	Bulk
Part Status:	Obsolete
Switch Type:	General Purpose
Number of Outputs:	2
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	Parallel
Voltage - Load:	6V ~ 28V
Voltage - Supply (Vcc/Vdd):	4.5V ~ 5.5V
Current - Output (Max):	11A
Rds On (Typ):	4mOhm
Input Type:	Non-Inverting
Features:	Slew Rate Controlled
Fault Protection:	Over Temperature, Over Voltage, Short Circuit
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-DSO-36-44
Package / Case:	36-BSSOP (0.295", 7.50mm Width)

Please confirm the specifications of the products when ordering.
