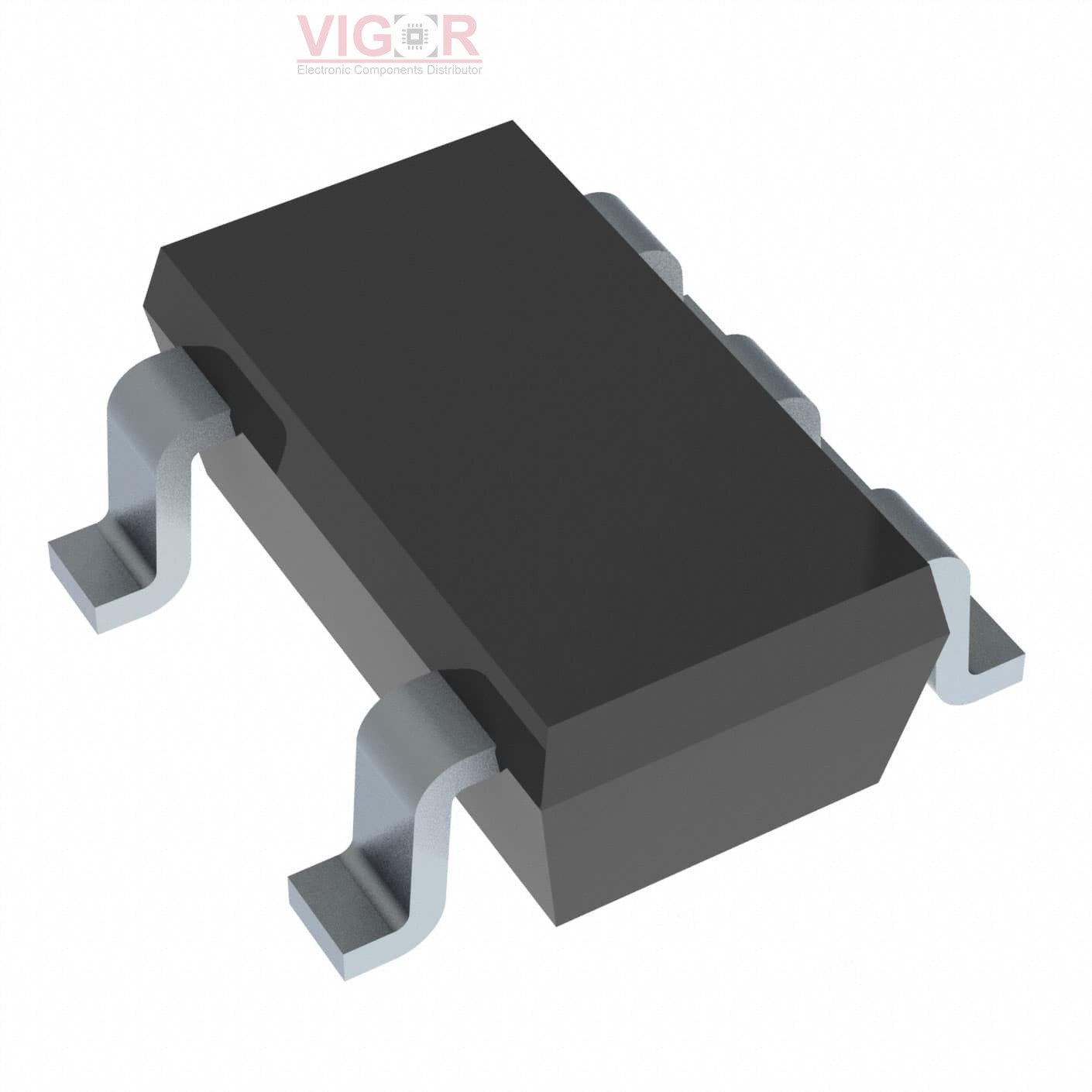

R5524N002B-TR-FE

Part No :: R5524N002B-TR-FE

Manufacturer: RICOH Electronic Devices Co., LTD.

VIGOR # :: 3867991

Description: IC PWR SWITCH N-CHAN 1:1 SOT23-5

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: R5524N002B-TR-FE PDF

Country of origin: -

Date code: -

R5524N002B-TR-FE Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	USB Switch
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	-
Voltage - Load:	2.2V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	800mA
Rds On (Typ):	100mOhm
Input Type:	Non-Inverting
Features:	-
Fault Protection:	Over Current, Over Temperature, Reverse Current, UVLO
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23-5
Package / Case:	SC-74A, SOT-753
