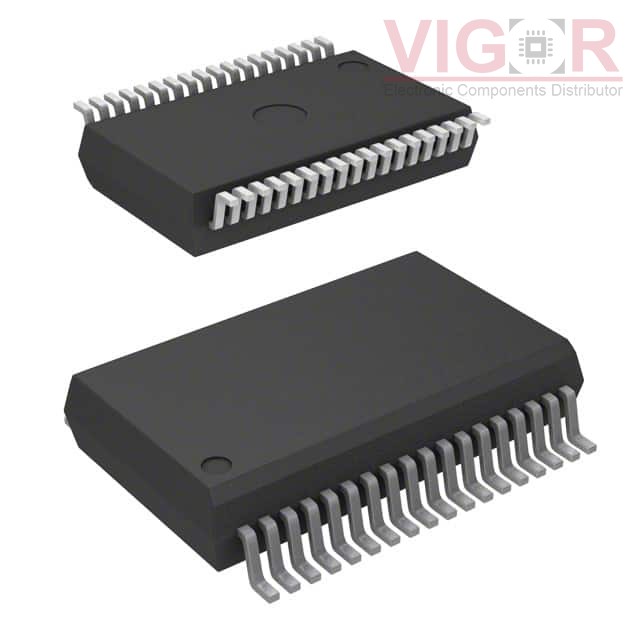

BTS5480SFXUMA1

Part No :: BTS5480SFXUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC PWR SWITCH N-CHAN 3:4 DSO-36

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: BTS5480SFXUMA1 PDF

Availability: 3114 pieces

Unit Price: ~~$5.47208~~

Current price of BTS5480SFXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTS5480SFXUMA1 Specifications

Type	Description
Series:	Reversave™
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Switch Type:	General Purpose
Number of Outputs:	4
Ratio - Input:Output:	3:4
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	SPI
Voltage - Load:	8V ~ 17V
Voltage - Supply (Vcc/Vdd):	3V ~ 5.5V
Current - Output (Max):	-
Rds On (Typ):	3.5mOhm, 11mOhm
Input Type:	-
Features:	Slew Rate Controlled
Fault Protection:	Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-DSO-36-43
Package / Case:	36-BSSOP (0.295", 7.50mm Width)
