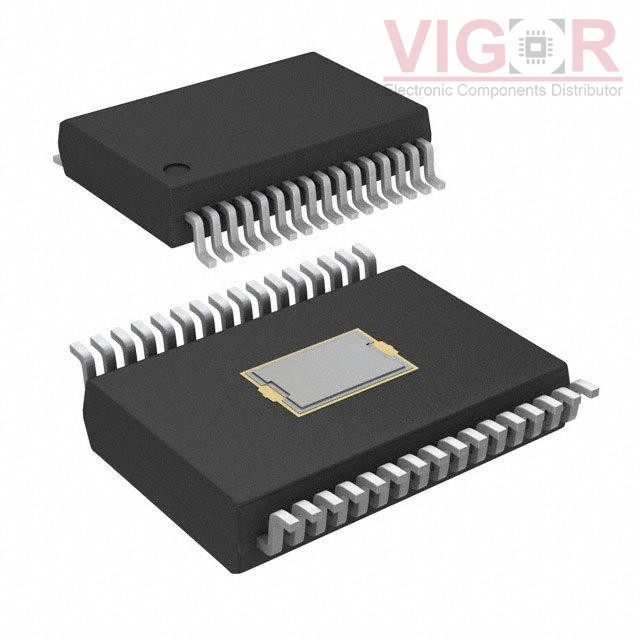

MC22XS4200CEKR2

Part No :: MC22XS4200CEKR2

Manufacturer: NXP Semiconductors

Description: IC PWR SWITCH N-CHAN 1:1 32SOIC

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: MC22XS4200CEKR2 PDF

Availability: 1188 pieces

Unit Price: ~~$9.36000~~

Current price of MC22XS4200CEKR2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MC22XS4200CEKR2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Last Time Buy
Switch Type:	General Purpose
Number of Outputs:	2
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	SPI
Voltage - Load:	8V ~ 36V
Voltage - Supply (Vcc/Vdd):	3V ~ 5.5V
Current - Output (Max):	4.2A
Rds On (Typ):	22mOhm
Input Type:	-
Features:	Internal PWM, Slew Rate Controlled
Fault Protection:	Open Load Detect, Over Temperature
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	32-SOIC-EP
Package / Case:	32-SSOP (0.295", 7.50mm Width) Exposed Pad
