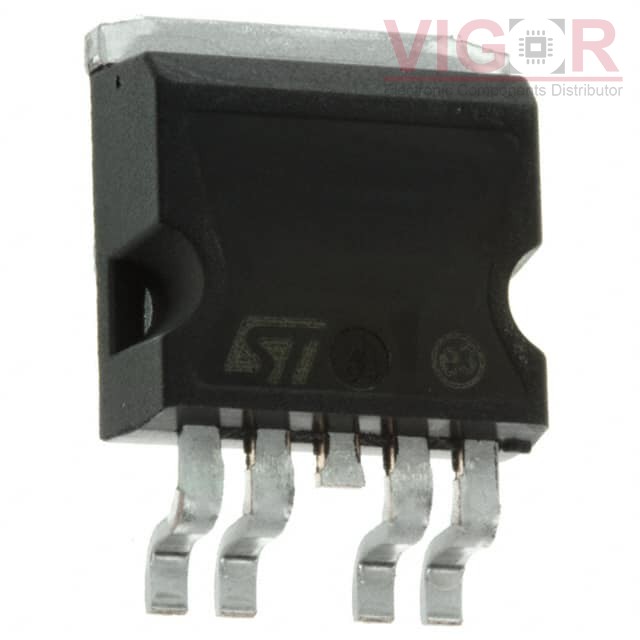

VN920B5-E

Part No :: VN920B5-E

Manufacturer: STMicroelectronics

Description: IC PWR DRIVER N-CHAN 1:1 P2PAK

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: VN920B5-E PDF

Availability: 4000 pieces

Current price of VN920B5-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VN920B5-E Specifications

Type	Description
Series:	VIPower™
Package:	Tube
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	5.5V ~ 36V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	30A
Rds On (Typ):	16mOhm (Max)
Input Type:	Non-Inverting
Features:	Auto Restart
Fault Protection:	Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	P2PAK
Package / Case:	P²PAK (4 Leads + Tab)

Please confirm the specifications of the products when ordering.
