NCP4543IMN5RG-A

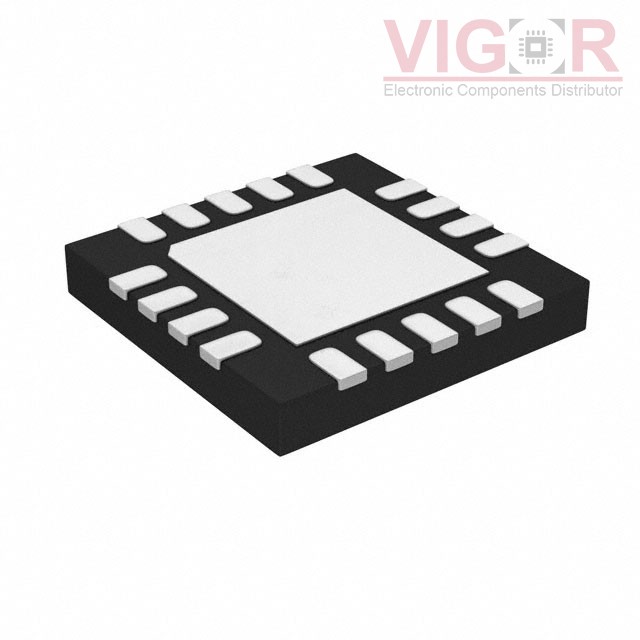

Image is for reference,
please contact us to get the real picture

Part No :: NCP4543IMN5RG-A

Manufacturer: VIGOR

Description: POWER SUPPLY SUPPORT CIRCUIT, FI

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: NCP4543IMN5RG-A PDF

Availability: 160 pieces

Unit Price: ~~$0.53000~~

Current price of NCP4543IMN5RG-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NCP4543IMN5RG-A Specifications

Type	Description
Series:	ecoSWITCH™
Package:	Bulk
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	3V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	7.3A
Rds On (Typ):	10.5mOhm
Input Type:	Non-Inverting
Features:	Slew Rate Controlled
Fault Protection:	-
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	18-QFN (3x3)
Package / Case:	18-VFQFN Exposed Pad

Please confirm the specifications of the products when ordering.
