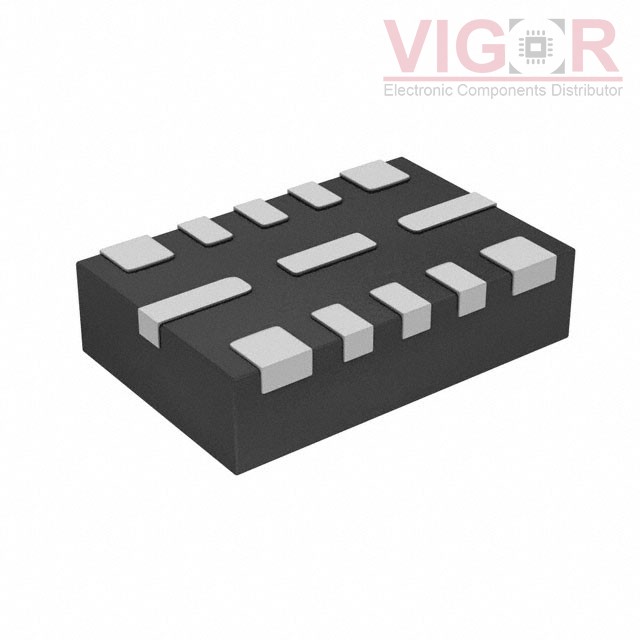

AP91352MN1-DT8-7

Part No :: AP91352MN1-DT8-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: IC PWR SWITCH N-CHAN 1:1 12WQFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: AP91352MN1-DT8-7 PDF

Availability: 2129 pieces

Unit Price: ~~$0.59360~~

Current price of AP91352MN1-DT8-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AP91352MN1-DT8-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	3.6V ~ 12V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	2.5A
Rds On (Typ):	50mOhm
Input Type:	Non-Inverting
Features:	Slew Rate Controlled
Fault Protection:	Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	W-QFN3020-12
Package / Case:	12-WFQFN Exposed Pad

Please confirm the specifications of the products when ordering.
