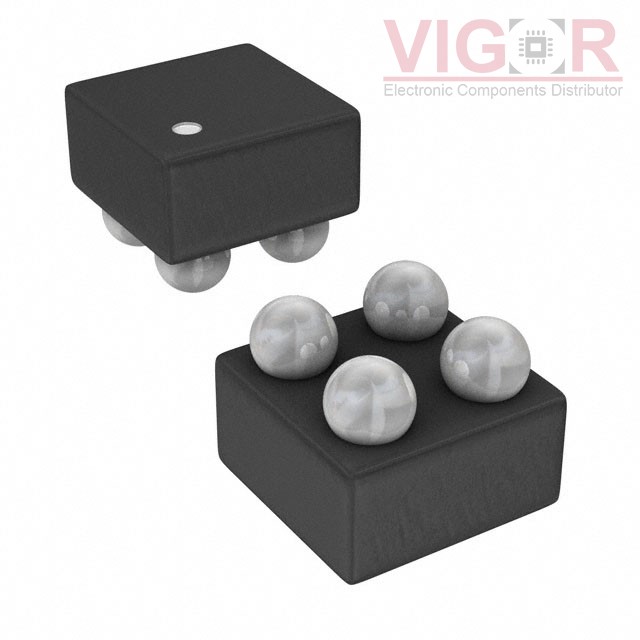

ADP190ACBZ-R7

Image is for reference,
please contact us to get the real picture

Part No :: ADP190ACBZ-R7

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC PWR SWITCH P-CHAN 1:1 4WLCSP

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: ADP190ACBZ-R7 PDF

Availability: 3010 pieces

Unit Price: ~~$1.15000~~

Current price of ADP190ACBZ-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADP190ACBZ-R7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	P-Channel
Interface:	On/Off
Voltage - Load:	1.1V ~ 3.6V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	500mA
Rds On (Typ):	80mOhm
Input Type:	Non-Inverting
Features:	Slew Rate Controlled
Fault Protection:	-
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	4-WLCSP (0.76x0.76)
Package / Case:	4-WFBGA, WLCSP

Please confirm the specifications of the products when ordering.
