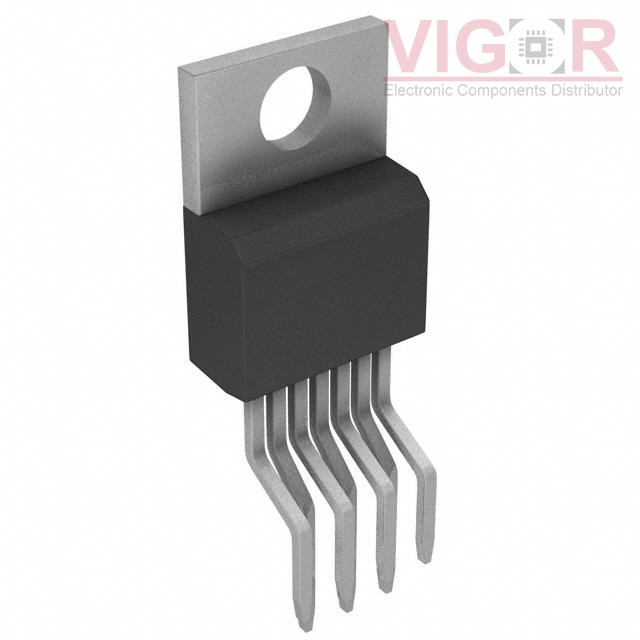

DRV101TG3

Image is for reference,
please contact us to get the real picture

Part No :: DRV101TG3

Manufacturer: VIGOR

Description: BUFFER/INVERTER PERIPHL DRIVER

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: DRV101TG3 PDF

Availability: 895 pieces

Unit Price: ~~$6.20000~~

Current price of DRV101TG3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DRV101TG3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Type:	Relay, Solenoid Driver
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	Low Side
Output Type:	Bipolar
Interface:	On/Off
Voltage - Load:	9V ~ 60V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	1.9A
Rds On (Typ):	-
Input Type:	Non-Inverting
Features:	Internal PWM, Status Flag
Fault Protection:	Current Limiting (Fixed), Over Temperature
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220-7
Package / Case:	TO-220-7 (Formed Leads)

Please confirm the specifications of the products when ordering.
