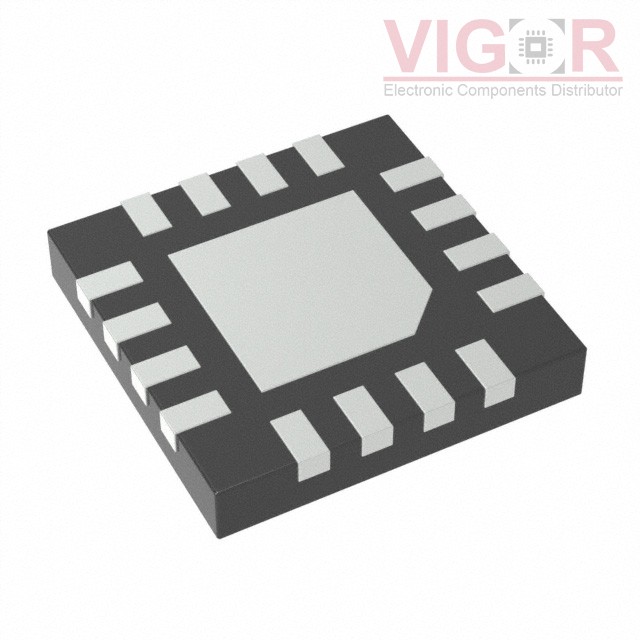

PI5USB2546ZHDEX

Part No :: PI5USB2546ZHDEX

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: IC PWR SWITCH N-CHAN 1:1 16UQFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: PI5USB2546ZHDEX PDF

Availability: 480 pieces

Current price of PI5USB2546ZHDEX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PI5USB2546ZHDEX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Type:	USB Switch
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	4.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	2.5A
Rds On (Typ):	73mOhm
Input Type:	Non-Inverting
Features:	Status Flag
Fault Protection:	Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	16-UQFN (3x3)
Package / Case:	16-UFQFN Exposed Pad
