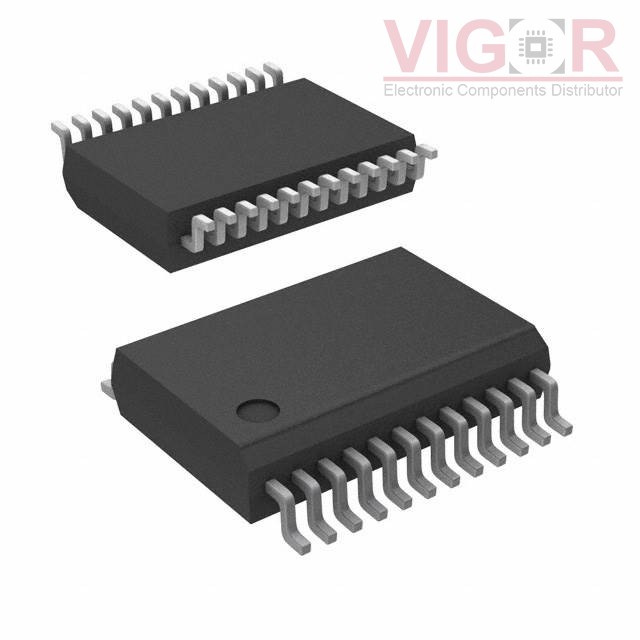

TPS2224ADBG4

Part No :: TPS2224ADBG4

Manufacturer: Texas Instruments

VIGOR # :: 3869147

Description: IC PWR SWITCH 3:4 24SSOP

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: TPS2224ADBG4 PDF

Country of origin: -

Date code: -

TPS2224ADBG4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Type:	PCMCIA Switch
Number of Outputs:	4
Ratio - Input:Output:	3:4
Output Configuration:	High Side
Output Type:	-
Interface:	Serial
Voltage - Load:	3.3V, 5V, 12V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	1A
Rds On (Typ):	95mOhm
Input Type:	-
Features:	Status Flag
Fault Protection:	Current Limiting (Fixed), Over Temperature
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	24-SSOP
Package / Case:	24-SSOP (0.209", 5.30mm Width)
