UDN2559LBTR-T

Part No :: UDN2559LBTR-T

Manufacturer: Allegro MicroSystems

VIGOR # :: 4901436

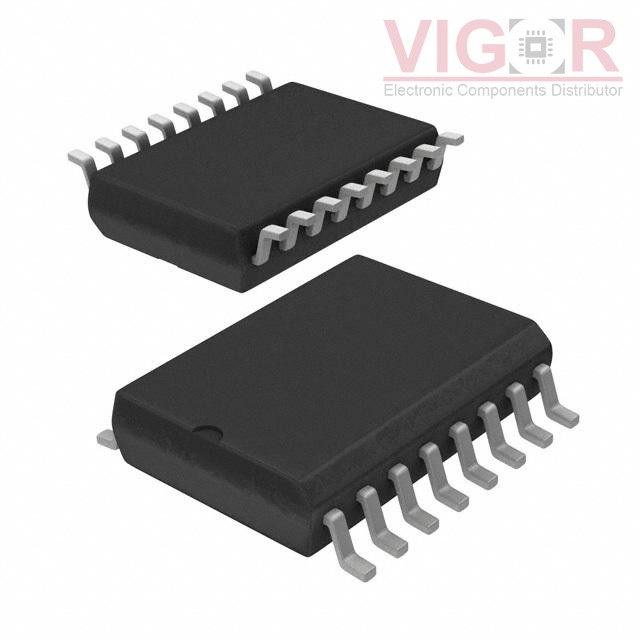

Description: IC PWR DRIVER BIPOLAR 1:1 16SOIC

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: UDN2559LBTR-T PDF

Country of origin: -

Date code: -

UDN2559LBTR-T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Type:	General Purpose
Number of Outputs:	4
Ratio - Input:Output:	1:1
Output Configuration:	Low Side
Output Type:	Bipolar
Interface:	On/Off
Voltage - Load:	60V (Max)
Voltage - Supply (Vcc/Vdd):	4.75V ~ 5.25V
Current - Output (Max):	700mA
Rds On (Typ):	-
Input Type:	Non-Inverting
Features:	-
Fault Protection:	Current Limiting (Fixed), Over Temperature
Operating Temperature:	-20°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	16-SOIC
Package / Case:	16-PowerSOIC (0.295", 7.50mm Width)
