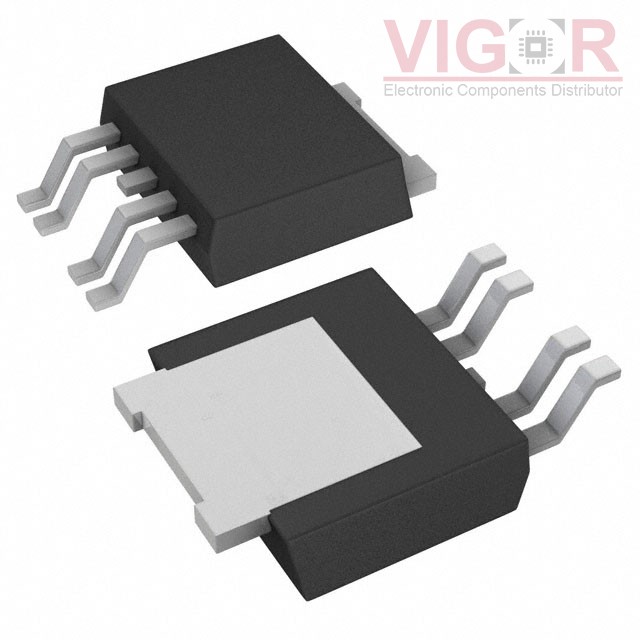

UPD166009T1F-E1-AY

Part No :: UPD166009T1F-E1-AY

Manufacturer: Renesas Electronics America

VIGOR # :: 4901503

Description: IC PWR DRIVER N-CHAN 1:1 TO252

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: UPD166009T1F-E1-AY PDF

Country of origin: -

Date code: -

UPD166009T1F-E1-AY Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	8V ~ 18V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	30A
Rds On (Typ):	8mOhm
Input Type:	Non-Inverting
Features:	Auto Restart
Fault Protection:	Current Limiting (Fixed), Over Temperature
Operating Temperature:	-
Mounting Type:	Surface Mount
Supplier Device Package:	TO-252 (MP-3ZK)
Package / Case:	TO-252-5, DPak (4 Leads + Tab), TO-252AD
